G7RGQ Antenna 1090MHz

After successfully testing of my G7RGQ antenna here my built details:

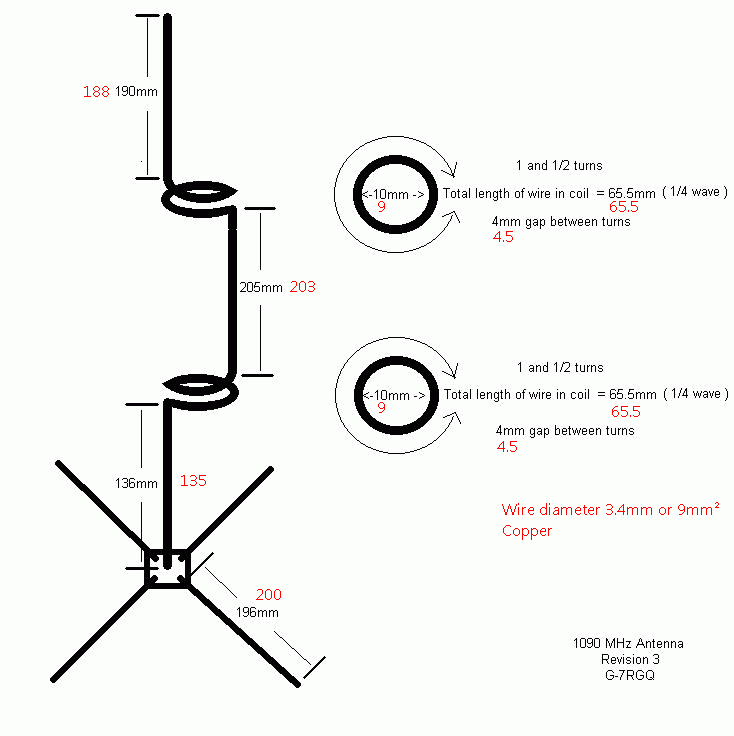

In red the dimensions I ended up with.
In red the dimensions I ended up with.

With above dimensions the antenna is tuned to about -22dB return loss at 1090MHz when placed inside the PVC tube.

G7RGQ Antenna. Radials are brass tube 4mm OD.
G7RGQ Antenna. Radials are brass tube 4mm OD.
SMA feedpoint
SMA feedpoint
Antenna protected by 20mm PVC pipe.
Antenna protected by 20mm PVC pipe.
SMA feedpoint
SMA feedpoint
SMA feedpoint
SMA feedpoint

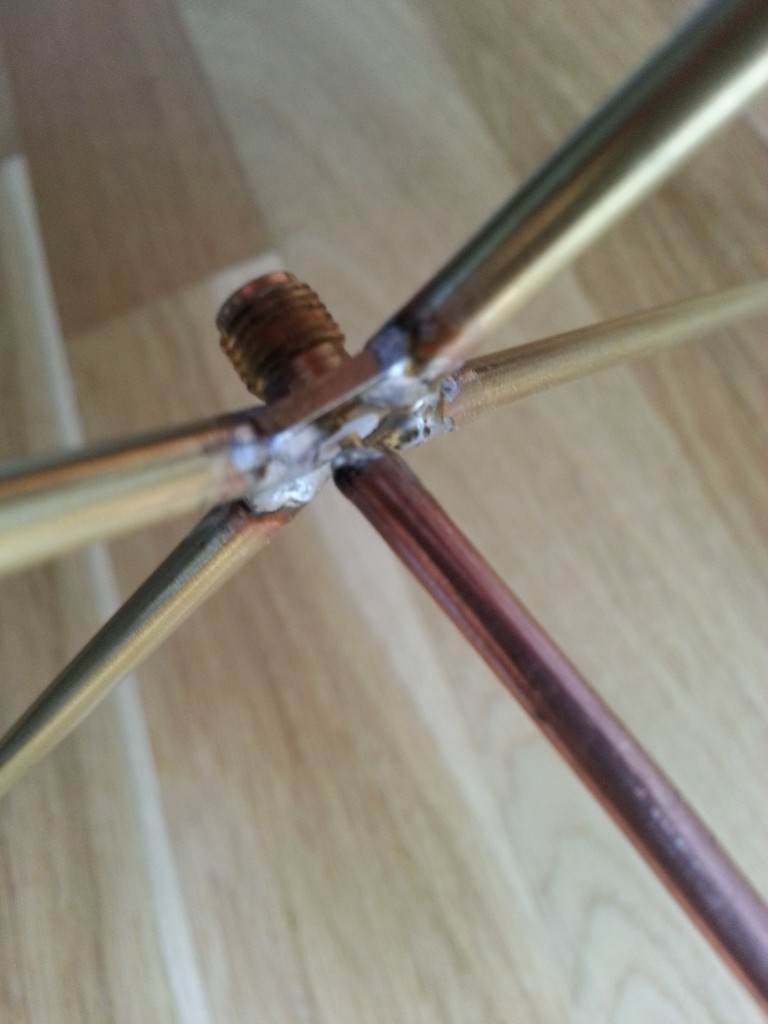

SMA feedpoint. Copper wire drilled 1.5mm and soldered to the SMA center.
SMA feedpoint. Copper wire drilled 1.5mm and soldered to the SMA center.
