L/S Band Low Noise Amplifier

While ago I bought a low noise amplifier kit from Jim at www.w6pql.com.

The LNA is set to work in the L- and S-band between 900MHz and 1300MHz. Althought it's possible to configure the LNA for use in 13cm band (2.4Ghz) as well. See Jim's page for details.

Some pictures and a gain plot:

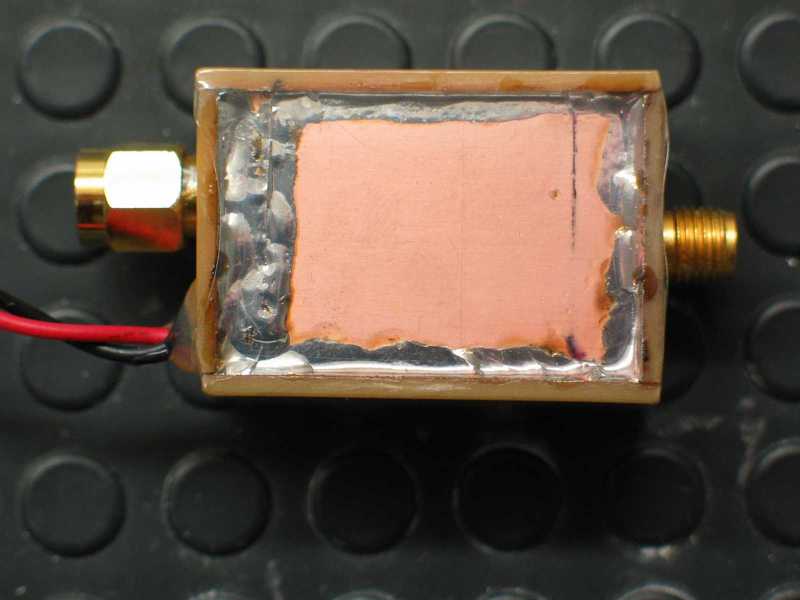

W6QPL LNA

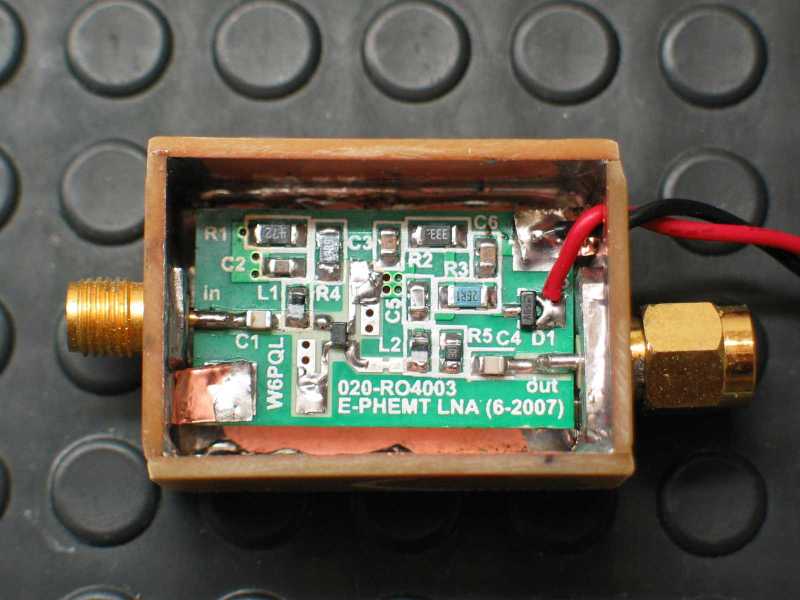

W6QPL LNA
W6QPL LNA
W6QPL LNA

Gain is ~15dB @ 1200MHz.
